產品說明

產品介紹:

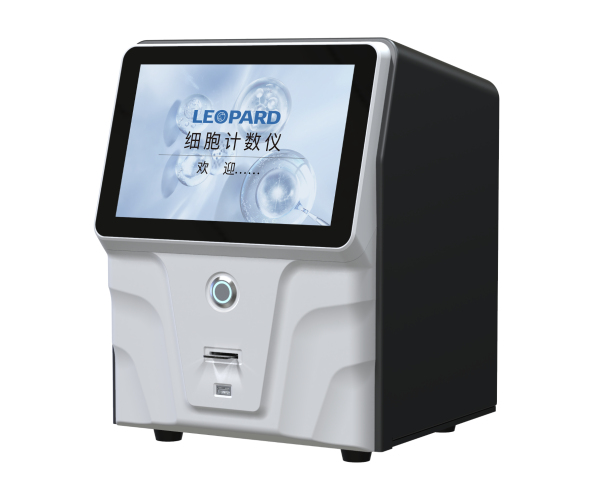

BFCC-8是一臺一體化全自動的細胞計數和分析儀器，內置先進光學成像系統和圖像分析算法，可對培養細胞的多種參數進行準確分析。ACC-8需要搭配專用的八孔細胞計數板進行使用，計數板可以分析8個不同的樣品或者對同一樣品進行多次重復分析。

產品簡介Introduction

BFCC-8可以在最快10秒內完成對樣品的濃度、活率、直徑和團聚率等細胞參數的分析，并自動保存數據并生成數據報告，并且可以通過多種格式文件進行導出。檢測的過程中采用一次性計數板，無需清洗，可避免樣品交叉污染。

BFCC-8 is an integrated, fully automatic cell counting and analysis instrument with built-in advanced optical imaging system and image analysis algorithm, which can accurately analyze multiple parameters of cultured cells. ACC-8 needs to be used with a dedicated eight-well cell counting plate. The counting plate can analyze 8 different samples or perform multiple repeated analyzes on the same sample.

BFCC-8 can complete the analysis of sample concentration, viability, diameter, aggregation rate and other cell parameters in as fast as 10 seconds, automatically save the data and generate data reports, and can export through multiple format files. During the detection process, a disposable counting plate is used, which eliminates the need for cleaning and avoids cross-contamination of samples.



產品特點Features

1.       外觀新穎獨特，體積小巧，功能強大

2.       采用10.1寸高清彩色觸摸屏，操作便捷

3.       先進的人工智能算法及圖像處理技術，有效提高圖像清晰度及可辨認范圍

4.       4k超采樣及高倍率物鏡提供更銳利的邊緣細節和更高的動態范圍

5.       擁有8孔位超大容量計數板，可以對八個不同樣品進行細胞計數和細胞活率分析或者對單個樣品進行多次重復分析

6.       視頻流圖像采集，實時觀測細胞形態及動向，清晰可靠

7.       擁有自動對焦分析專利的系統，可清晰顯示各種尺寸細胞內容



1. Novel and unique appearance, compact size and powerful functions

2. Adopt 10.1-inch high-definition color touch screen, easy to operate

3. Advanced artificial intelligence algorithms and image processing technology effectively improve image clarity and discernible range.

4.4k oversampling and high-magnification objectives provide sharper edge details and higher dynamic range

5. It has an 8-well ultra-large capacity counting plate, which can perform cell counting and cell viability analysis on eight different samples or perform multiple repeated analyzes on a single sample.

6. Video streaming image collection, real-time observation of cell morphology and trends, clear and reliable

7. A system with patented auto-focus analysis that can clearly display the contents of cells of various sizes



產品參數Parameters

型號：BFCC-8

環境溫度范圍：4℃~32℃（40°~90°F）

相對濕度范圍：＜80%（無冷凝）

處理時間：＜10s

樣品處理濃度：2×103 ~3×107 cells/ml

樣品直徑大小范圍：1-200μm

單次最小樣品體積：10μL

物鏡：10X

成像元件：1200W像素相機

內置存儲空間：500G

接口：HDMI X1 ，USBX2 ，RJ45X1

負載電源：AC 220V/AC 110V，50/60Hz

輸入電源：DC 12V，16A

儀器尺寸：280（W）X280（D）X370（H）

重量：***



Model: BFCC-8

Ambient temperature range: 4℃~32℃ (40°~90°F)

Relative humidity range: <80% (no condensation)

Processing time: <10s

Sample processing concentration:2×103 ~3×107 cells/ml

Sample diameter size range: 1-200μm

Single minimum sample volume: 10μL

Objective lens: 10X

Imaging element: 1200W pixel camera

Built-in storage space: 500G

Interface: HDMI X1, USBX2, RJ45X1

Load power supply: AC 220V/AC 110V, 50/60Hz

Input power: DC 12V, 16A

Instrument size: 280 (W) X280 (D) X370 (H)

weight:***
